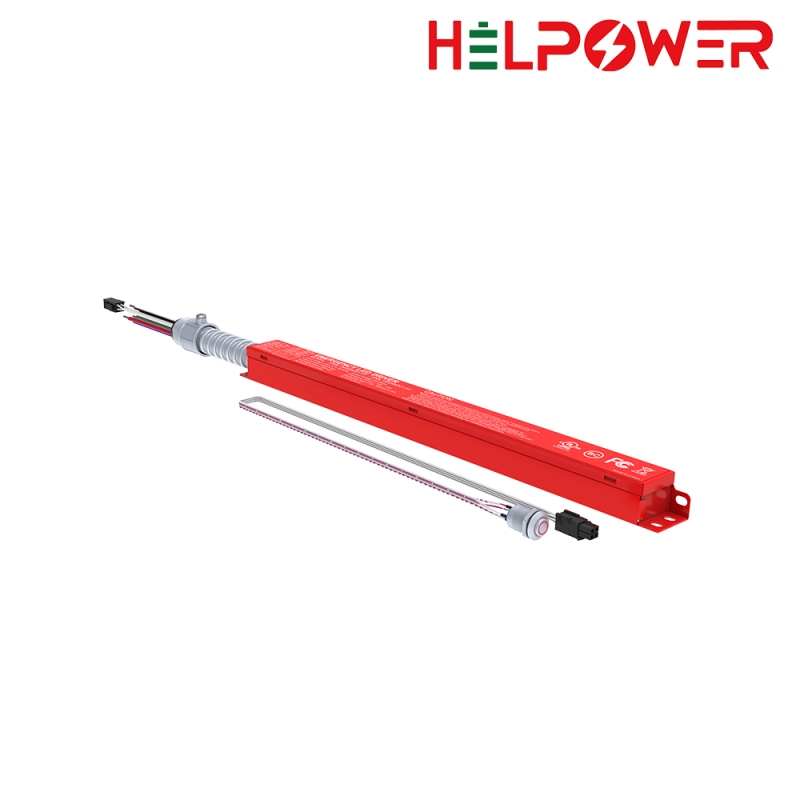

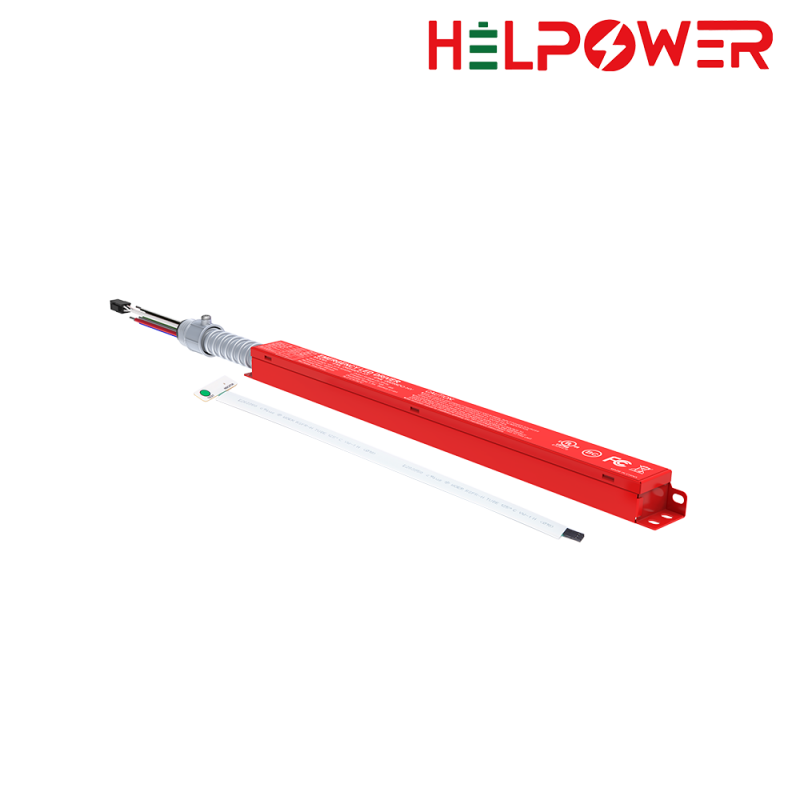

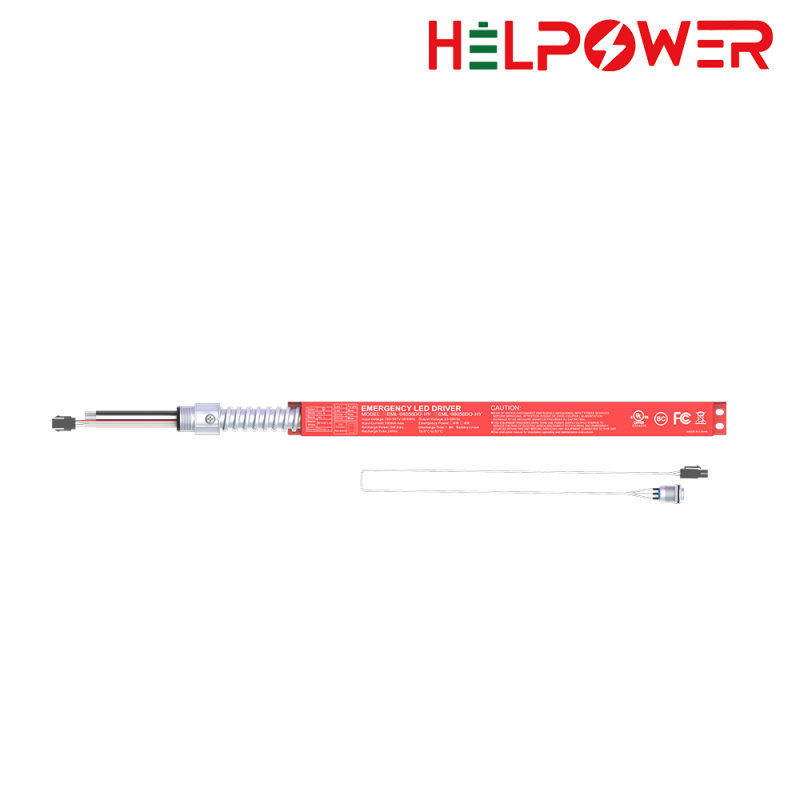

UL-EML Series

Model:EML-WWVVVDO-YY

Features :

  UL Listed for US and CANADA Listed to UL924 and tested to CSA C22.2 NO.141 Field or factory installation

  Low energy consumption CEC Title20 compliance

  High voltage Input

  Constant output power

  Self-testing

  Super Slim: L12.6"(320mm)*W 0.98"(25mm)*H 0.88"(22.5mm)

  For wiring to the led driver's AC input

Product Description
Input Voltage
AC100-347V
AC100-347V
AC100-347V
AC100-347V
Ouput Voltage
DC170V
DC170V
DC170V
DC170V
Output Power
4W
8W
4W
8W
Recharge Time
≥24 Hours
≥24 Hours
≥24 Hours
≥24 Hours
Illumination Time
≥ 90Mins
≥ 90Mins
≥ 90Mins
≥ 90Mins
Battery
Li-ion
Li-ion
Li-ion
Li-ion
Ambient Temp
0℃~ 50℃
0℃~ 50℃
0℃~ 50℃
0℃~ 50℃
Note: "HY" =sales code
