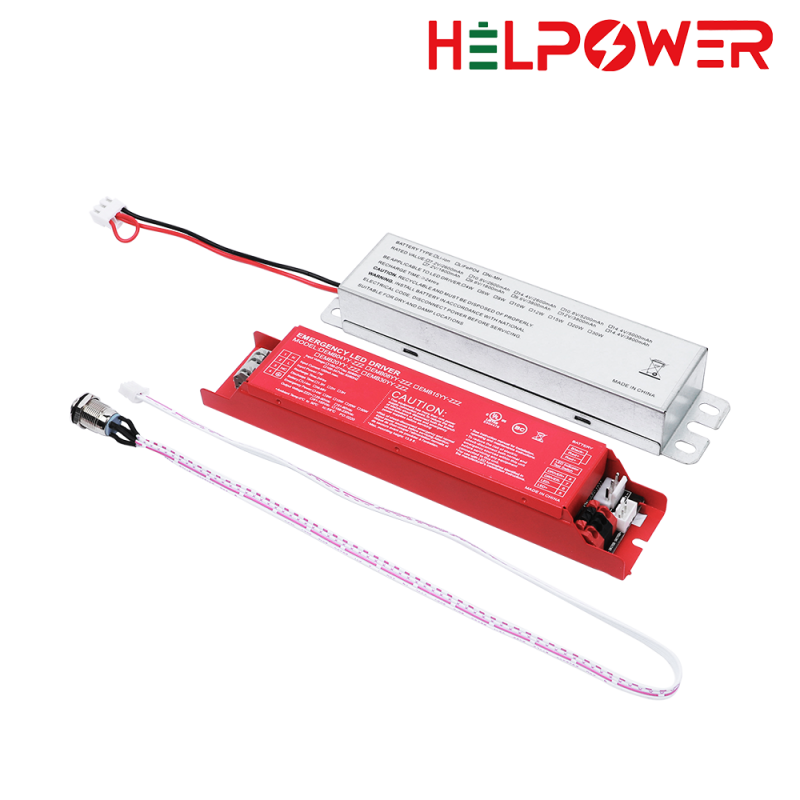

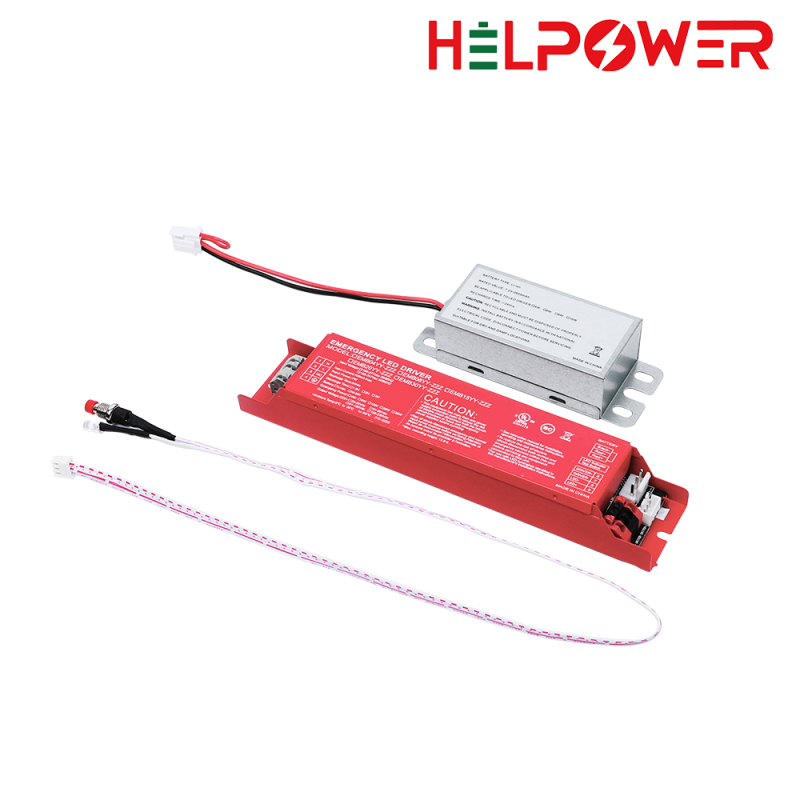

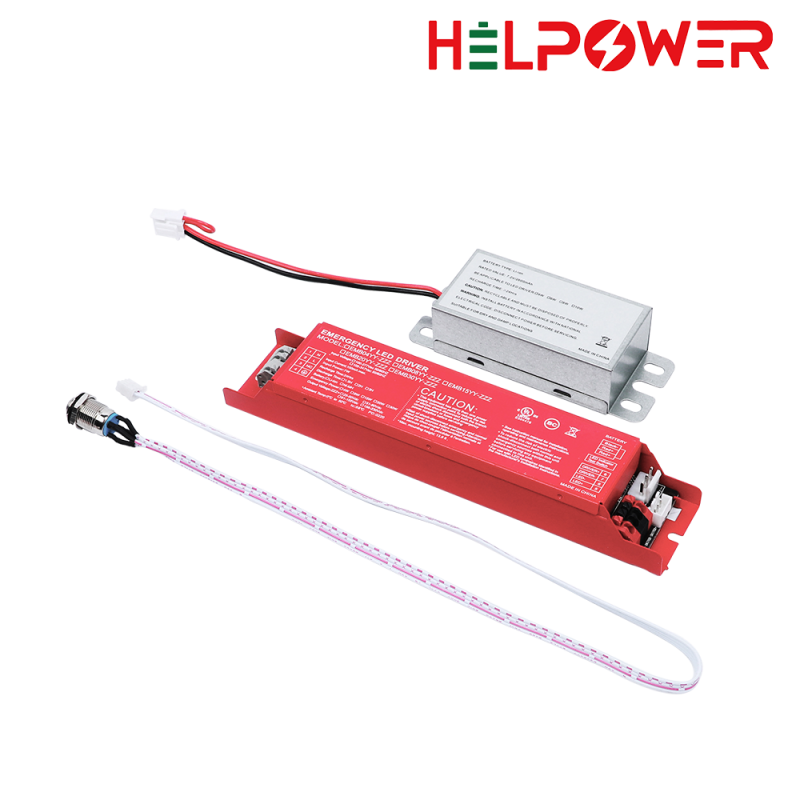

UL-EMBYY Series

Model:EMBXXYY-ZZZ

Features :

  UL LISTED FOR US & CANADA Listed to UL924 and tested to CSA 22.2 No. 141 Field or Factory Installation

  Self-test function

  Triple protection

  Malfunction indication

  Constant Output Power

  Input: 100-277Vac, Output: 25-50Vdc/51-80Vdc/81-155Vdc/156-230Vdc

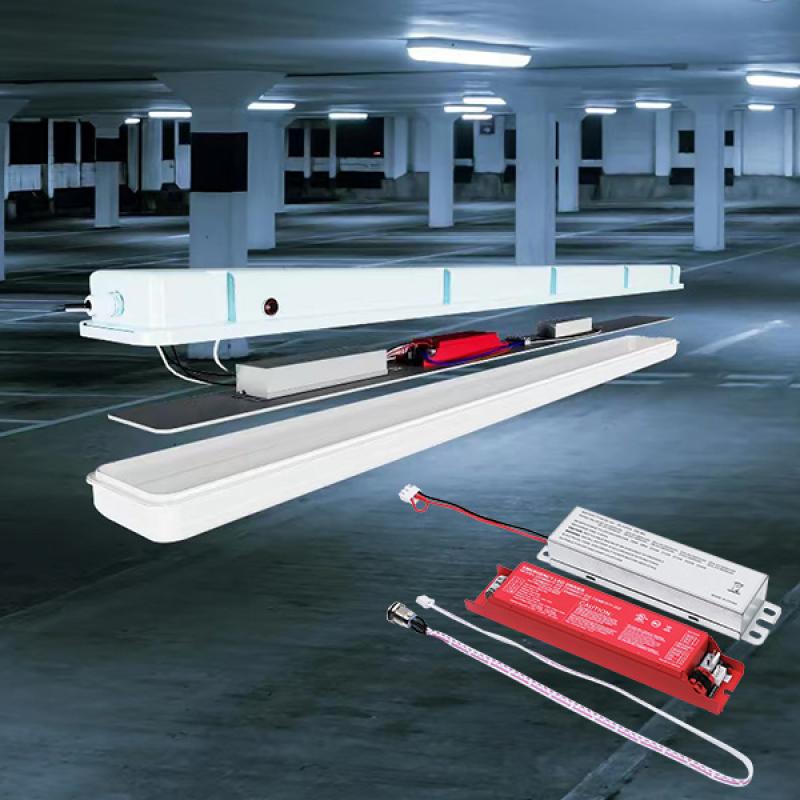

  Suitable for LED products with drivers installing externally, such as led strip light, led troffer, Canopy, etc.



Product Description
Input Voltage
AC100-277V
AC100-277V
AC100-277V
Ouput Voltage
DC25-230V
DC25-230V
DC25-230V
Output Power
8W
15W
30W
Recharge Time
≥24 Hours
≥24 Hours
≥24 Hours
Illumination Time
≥ 90Mins
≥ 90Mins
≥ 90Mins
Battery
Li-ion
Li-ion
Li-ion
Ambient Temp
0℃~ 50℃
0℃~ 50℃
0℃~ 50℃
Note: "YY" =sales code ; "ZZZ"= output voltage
